長文の文書構造、単語の関係性を解析する手段をClaudeで調べていたところ、Sentence-BERTというキーワードがでてきたため、これを掘り下げて、具体的に実装してみました。

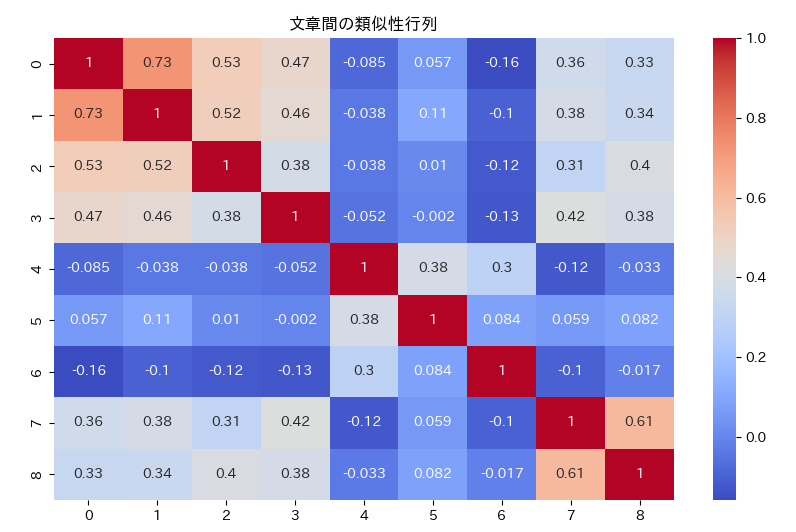

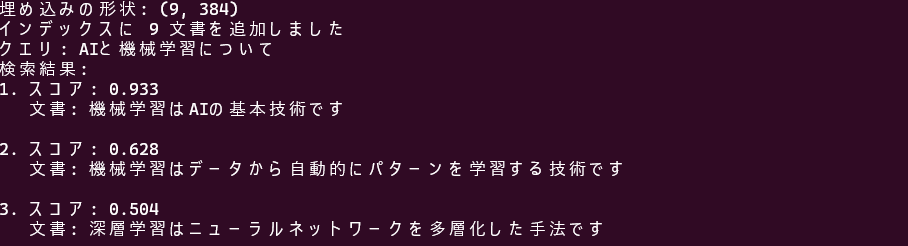

説明はコードのコメントでわかると思いますが、Claudeで、出力したコードを編集して、文章の類似度の距離や検索をテストしました。

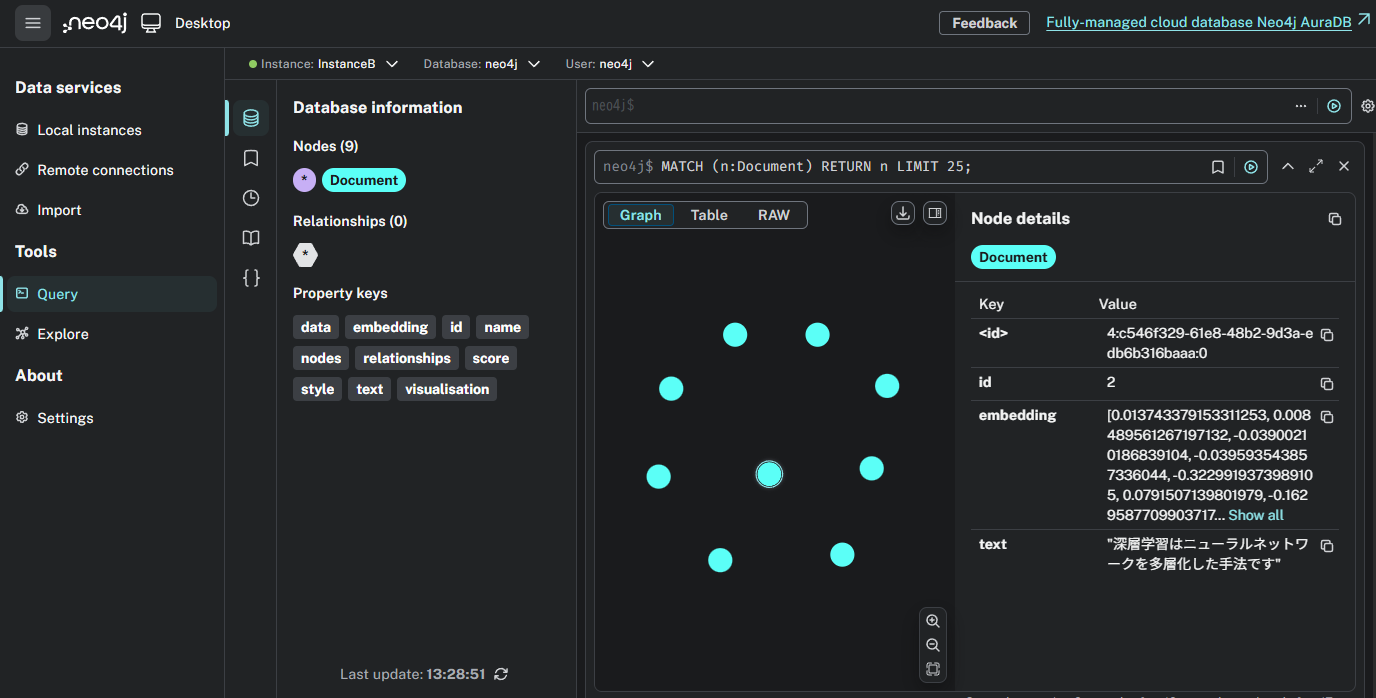

Neo4Jは下記の環境
https://decode.red/net/archives/2198
インストール
pip install sentence-transformers
pip install matplotlib
pip install seaborn
pip install neo4j
pip install japanize-matplotlib
pip install faiss-gpu-cu12
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 |
from neo4j import GraphDatabase from sentence_transformers import SentenceTransformer import numpy as np from sklearn.metrics.pairwise import cosine_similarity from sklearn.cluster import KMeans from sklearn.decomposition import PCA import matplotlib.pyplot as plt import japanize_matplotlib import seaborn as sns import faiss documents = [ "機械学習はAIの基本技術です", "機械学習はデータから自動的にパターンを学習する技術です", "深層学習はニューラルネットワークを多層化した手法です", "自然言語処理は人間の言語を計算機で処理する技術です", "今日は天気が良く、散歩日和です", "明日は雨が降る予報が出ています", "桜の花が美しく咲いています", "データサイエンスは統計学と計算機科学の融合分野です", "ビッグデータの解析には高性能な計算機が必要です" ] model = SentenceTransformer('paraphrase-multilingual-MiniLM-L12-v2') # 文埋め込み生成 embeddings = model.encode(documents) class DocumentGraphBuilder: def __init__(self, uri, user, password): self.driver = GraphDatabase.driver(uri, auth=(user, password)) def close(self): self.driver.close() def create_document_nodes(self, documents): """文書ノードを作成""" with self.driver.session() as session: for i, (doc, embedding) in enumerate(zip(documents, embeddings)): session.run( "CREATE (d:Document {id: $id, text: $text, embedding: $embedding})", id=i, text=doc, embedding=embedding.tolist() ) def create_similarity_edges(self, threshold=0.7): """類似性に基づいてエッジを作成""" with self.driver.session() as session: # 全文書ペアの類似性を計算してエッジ作成 result = session.run("MATCH (d1:Document), (d2:Document) WHERE id(d1) < id(d2) RETURN d1, d2") for record in result: d1_embedding = np.array(record["d1"]["embedding"]) d2_embedding = np.array(record["d2"]["embedding"]) similarity = cosine_similarity([d1_embedding], [d2_embedding])[0][0] if similarity > threshold: session.run( """ MATCH (d1:Document {id: $id1}), (d2:Document {id: $id2}) CREATE (d1)-[:SIMILAR {score: $score}]->(d2) """, id1=record["d1"]["id"], id2=record["d2"]["id"], score=similarity ) graph_builder = DocumentGraphBuilder("bolt://192.168.0.180:7687", "neo4j", "password") graph_builder.create_document_nodes(documents) graph_builder.create_similarity_edges(threshold=0.8) graph_builder.close() print(f"埋め込みの形状: {embeddings.shape}") # クラスタリング kmeans = KMeans(n_clusters=3, random_state=42) clusters = kmeans.fit_predict(embeddings) # 次元削減と可視化 pca = PCA(n_components=2) embeddings_2d = pca.fit_transform(embeddings) #plt.figure(figsize=(12, 8)) plt.figure(figsize=(10, 6)) scatter = plt.scatter(embeddings_2d[:, 0], embeddings_2d[:, 1], c=clusters, cmap='viridis') plt.colorbar(scatter) # 各点にテキストラベルを追加 for i, doc in enumerate(documents): plt.annotate(f"{i}: {doc[:20]}...", (embeddings_2d[i, 0], embeddings_2d[i, 1]), xytext=(5, 5), textcoords='offset points', fontsize=8) plt.title('文書クラスタリング結果') plt.xlabel('PCA Component 1') plt.ylabel('PCA Component 2') plt.show() # 類似性行列の計算 similarity_matrix = cosine_similarity(embeddings) # 結果の可視化 plt.figure(figsize=(10, 6)) sns.heatmap(similarity_matrix, xticklabels=range(len(documents)), yticklabels=range(len(documents)), annot=True, cmap='coolwarm') plt.title('文章間の類似性行列') plt.show() class FastSimilaritySearch: def __init__(self): self.index = None def build_index(self, documents): """文書インデックスを構築""" # FAISS インデックス構築 dimension = embeddings.shape[1] self.index = faiss.IndexFlatIP(dimension) # 内積ベース # 正規化(コサイン類似度のため) faiss.normalize_L2(embeddings) self.index.add(embeddings.astype('float32')) print(f"インデックスに {len(documents)} 文書を追加しました") def search(self, query, k=5): """クエリに対する類似文書検索""" if self.index is None: raise ValueError("まずbuild_index()を実行してください") # クエリの埋め込み生成 query_embedding = model.encode([query]) faiss.normalize_L2(query_embedding) # 検索実行 scores, indices = self.index.search(query_embedding.astype('float32'), k) # 結果整理 results = [] for score, idx in zip(scores[0], indices[0]): if idx != -1: # 有効なインデックス results.append({ 'document': documents[idx], 'score': score, 'index': idx }) return results search_engine = FastSimilaritySearch() search_engine.build_index(documents) query = "AIと機械学習について" results = search_engine.search(query, k=3) print(f"クエリ: {query}") print("検索結果:") for i, result in enumerate(results): print(f"{i+1}. スコア: {result['score']:.3f}") print(f" 文書: {result['document']}") print() |
上書きされるので、実行のたびに削除
MATCH (n) DETACH DELETE n
このような学ぶ道具としてのAIの活用は、本当に便利に感じます。
これだったらどんな難解なコーディングでもいけそうな気がしてきます。
